TUBE MILL

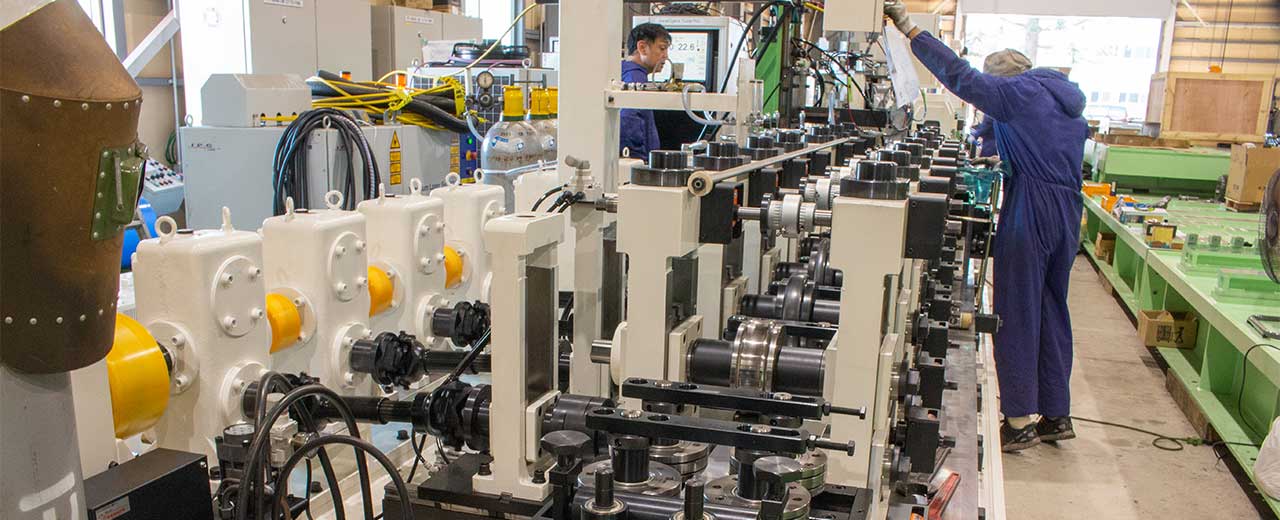

Tube Mill

Welding Method for Tube Mill

1.High Frequency Resistance Welding
2.Laser Beam Welding
3. PLASMA Welding, Improved TIG Welding
4.Hi Pulse TIG Welding, Improved TIG Welding
5.Tungsten Inert Gas Welding
6.Metal Inert Gas Welding

Difference in Welded Cross Section

Laser welded cross section

Laser welded cross section

Plasma welded cross section

Plasma welded cross section

Model and Manufacturable Range
Model Drive Shaft Diameter(mm) Out Diameter(mm) Thickness(mm) TIG/ERW
WELDING TYPE
(STANDARD)
KU-10 25.0 Φ 6.0〜10.0 0.4〜0.8 TIGのみ
KU-16 30.0 Φ 8.0〜16.0 0.5〜1.2 TIGのみ
KU-20 35.0 Φ 8.0〜20.0 0.5〜1.5 TIGのみ
KU-25 35.0 Φ 10.0〜25.0 0.8〜1.5 ERW. TIG
1KU 40.0 Φ 12.7〜34.0 0.8〜2.0 ERW. TIG
1-1/2KU 45.0 Φ 16.0〜48.6 0.8〜2.5 ERW. TIG =>MovieViewing
2KU 50.8 Φ 19.0〜60.5 1.2〜3.0 ERW. TIG
2-1/2 KU 60.0 Φ 25.0〜76.3 1.5〜4.0 ERW. TIG
3KU 65.0 Φ 34.0〜89.1 2.0〜4.0 ERW. TIG
3-1/2 KU 70.0 Φ 50.8〜101.6 2.0〜4.0 ERW. TIG
4KU 80.0 Φ 73.0〜114.3 2.0〜5.0 ERW. TIG
6KU 100.0 Φ 89.1〜165.2 2.0〜6.6 ERW. TIG

TubeMillSpecNotice


There are parts for retrofit. Please contact us
